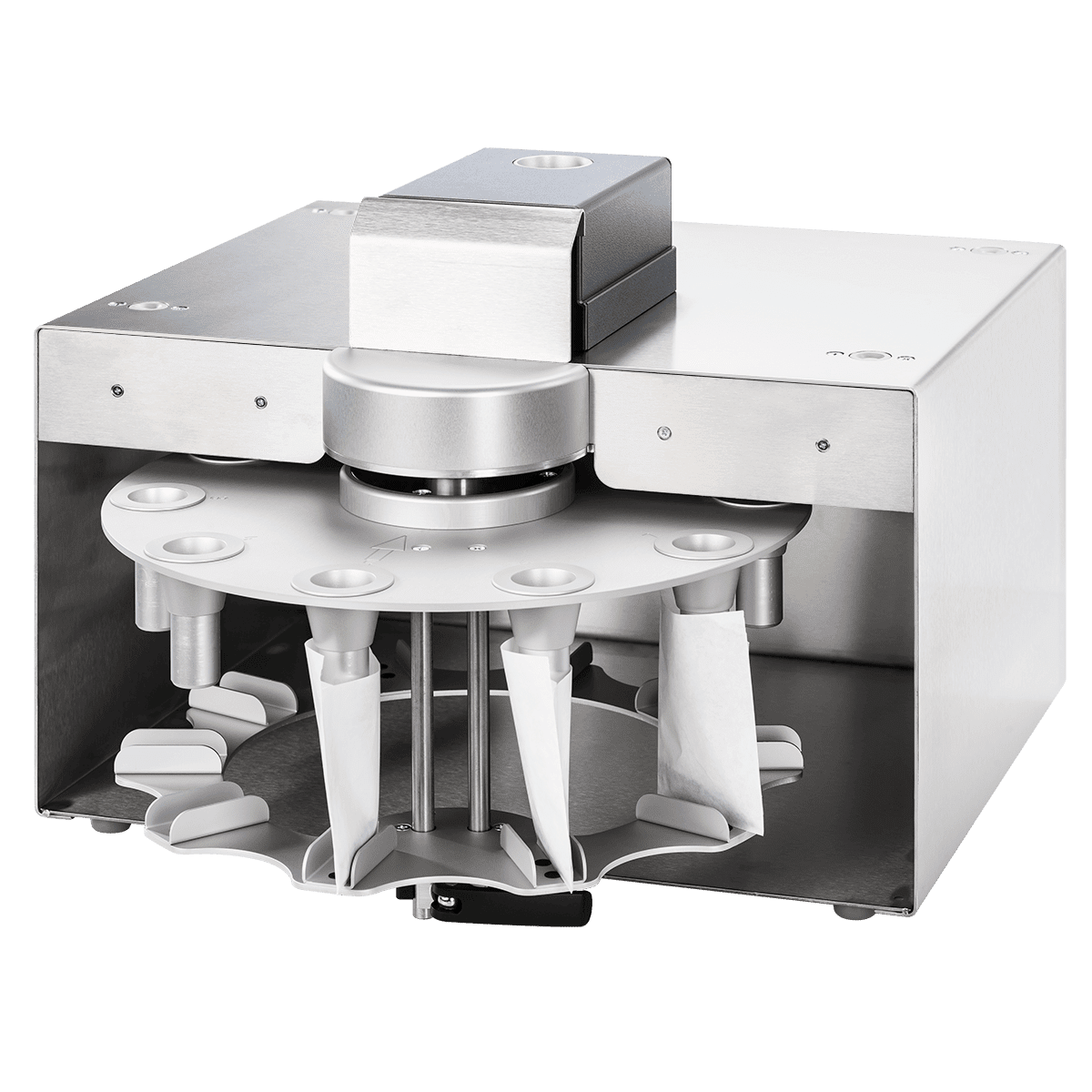

Contafill

Effortless filling of small seed batches
  • For all of the most popular paper and plastic bags

  • Carousel for plastic and glass bottles

  • Number of seeds and bags can be preselected

  • Detection of missing bags or bottles

  • Continuous operation or stop after one cycle

Effortless filling of small seed batches

  • For all of the most popular paper and plastic bags
  • Carousel for plastic and glass bottles
  • Number of seeds and bags can be preselected
  • Detection of missing bags or bottles
  • Continuous operation or stop after one cycle

Function

Put the seeds into the feed hopper and fit bags to the carousel. Preselect the number of grains per bag on the Contador or using the PC software and start. The Contador starts and counts the required number of grains into the first bag. The bags can be circulated continuously or individually. In this way, the bags can be replaced at regular intervals, or the entire carousel can be reloaded at the end of counting. This procedure is made easier by the base for the carousel. This reduces the stop times during the filling procedure to a minimum. The Contador automatically detects the bags using a sensor so that no valuable seeds are wasted.

Technical data
Product Voltage Dimensions Weight Item number
Contafill 24 V (via Contador) 480x440x340 mm 16 kg 1410 0050
Contafill (high design) 24 V (via Contador) 480x440x420 mm 16 kg 1410 0055
Accessories
Accessories Item number
Base for supporting a carousel 2410 0650
Carousel for bags and bottles approx. 50 to 120 mm long for 10 filling positions 2410 0501
Carousel for bags and bottles approx. 50 to 200 mm long for 10 filling positions 2410 0502

Download Short Instructions

Download PDF File
